Seqrite Secure Web Gateway

Comprehensive web and application security solution for enterprises

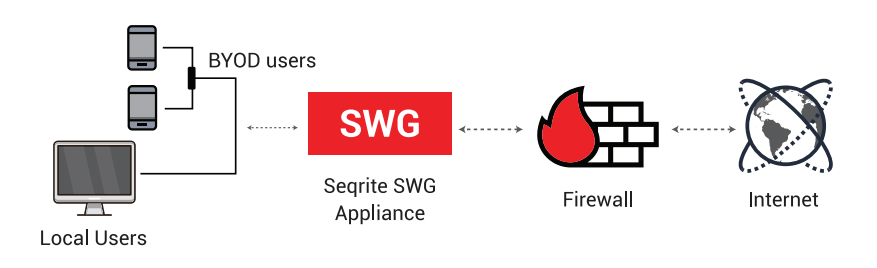

Seqrite Secure Web Gateway (SWG) provides an intuitive solution that filters unwanted software/malware from user-initiated Web/Internet traffic and enforces corporate and regulatory policy compliance. SWG offers policy controlled solution transforming the web from a risky to a secure environment tailored exactly to the organization’s needs.It supports virtual and hardware appliance.


URL Filtering

Identifies and blocks malicious websites, URLs, domains, phishing websites which act as a launch pad for security attacks and threats such as malware, spam, and botnets

Data Loss Prevention (DLP)

Control upload of sensitive content to undesirable applications like chat servers, banner servers, ad-rotators, Instant Messengers, etc.

HTTPS Inspection

Prevents SSL security breaches, detects compromised HTTPS sites.

Reverse Proxy

Application layer security for your Internet / Intranet sites. Block upload of dangerous stuff, to your web-site.

Internet Caching Protocol (ICP)

Advanced Cache management allows you to use remotely located web-caches.

Multi-proxy configuration

Manage clusters. Configure all proxies across the enterprise to use configurations from master proxy. Configure your master, slaves will follow!

LDAP Integration

Enforce Internet access policies based on user’s LDAP membership.

Application Signature

Collection of applications and group of applications based on their signatures, which can be used for monitoring or blocking purposes.

Custom URL Databases

Pre-Set white-lists / black-lists of web-sites.


Seqrite Secure Web Gateway is available in the below formats

1. Pre-installed in Appliance – Seqrite T2M250 & T2M100

2. ISO that can be deployed on Virtual or Physical Desktop/Server machine

Seqrite Hardware Web Appliances

Max Users Up to 315 Up to 425
Storage 128GB 240GB
Copper GbE ports 8 10
Console port 1 1
USB Ports 2 2
Max. Throughput 1 Gbps 1 Gbps
Max. concurrent TCP Connections 315 425
Max. concurrent HTTPS Session/Second 650 650
Form Factor 1U1U
Dimension (W x D x H) (inches) 16.9 x 13 x 1.7 17.2 x 11.4 x 1.7
Dimension (W x D x H) (mm) 430 x 330 x 44 438 x 292 x 44
Weight 4.5 kgs 4.65 kgs
Operating Temperature 0 ~ 40°C ( 32 ~ 104°F ) 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature -20 ~ 75°C (-4 ~ 167°F) -10 ~ 70°C (14 ~ 158°F)
Operating Humidity (RH)(%) 10 ~ 85% relative humidity, non-operating, non-condensing 10 ~ 90%RH, non-condensing
Power Supply 150W ATX internal auto ranging 250W ATX internal auto ranging
Certification CE/FCC CE/FCC, UL


Minimal Hardware

  • RAM: 4 GB
  • CPU: 2 Core
  • HDD: 160 GB


Seqrite SWG is SMP-aware (Symmetric multiprocessing) which can serve many users and should use hardware with multiple CPU cores, and ability to use more RAM efficiently. While the below specified Minimal Hardware will enable us to do a functional setup of Seqrite Secure Web-Gateway, the actual hardware requirements would vary depending upon the number of users, concurrent connections, and features intended to enable.

CPU (cores)RAM (GB)HDD CapacityConcurrent ConnectionsApprox Users
48 500GB 100 25
4 161 TB 500150
8 162 TB 1000350
8 32 4 TB 1500600
1632 4 TB 20001000
16648 TB 25001500
