Future-ready Security with Wi-Fi Access Point for SOHO/ROBO networks

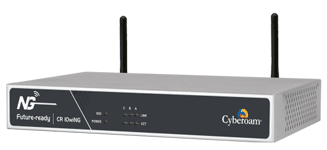

CR10wiNG is the Next Generation Unified Threat Management appliance with Wi-Fi access points that offers “the fastest UTMs made for SMBs” to small offices with high-performance security over WLAN. Combined with security over wired networks offered by its range of UTM appliances, Cyberoam enables organizations to overcome the physical limitations of securely accessing network resources and offers more user flexibility, user productivity and reduced network ownership costs. The best-in-class hardware along with software to match, enables the NG series appliances to offer unmatched throughput speeds, compared to any other UTM appliance in this market segment. This assures support for future IT trends in organizations like high-speed Internet and rising number of devices – offering future-ready security to small office networks. Cyberoam’s Layer 8 technology that treats user-identity as the 8th Layer or the HUMAN layer in the protocol stack, works even in WLAN environments, to allow Identity-based security policies in dynamic IP environment.

The ‘Next-Generation’ UTM Series for SOHO:
Faster performance, broader coverage


L7: Application

L6: Presentation               ASCII, EBCDIC, ICA

L5: Session                              L2TP, PPTP

L4: Transport                         TCP, UDP

L3: Network

L2: DataLink                    00-17-BB-8C-E3-E7

L1: Physical

Cyberoam UTM features assure Security, Connectivity, Productivity


Network Security
– Firewall
– Intrusion Prevention System
– Wireless Security

Content Security
– Anti-Virus/Anti-Spyware
– Anti-Spam
– HTTPS/SSL Content Security

Administrative Security
– Next-Gen UI


Business Continuity
– Multiple Link Management

Network Availability
– 3G/4G/WiMAX Connectivity

Future-ready Connectivity
– “IPv6 Ready” Gold Logo


Employee Productivity
– Content Filtering
– Instant Messaging Archiving & Controls

IT Resource Optimization
– Bandwidth Management
– Traffic Discovery
– Application Visibility & Control

Administrator Productivity
– Next-Gen UI


Copper GbE Ports….3
Internal/DMZ/WAN Ports…..yes
Console Ports (RJ45/DB9)…1
USB Ports…..2

Built in Wireless LAN

-Wireless Standards:
IEEE 802.11 a/b/g/n (WEP, WPA, WPA2,
802.11i , TKIP, AES, PSK)
Detachable 2×2 MIMO
-Access Points:
Up to 8 SSID
-Transmit Power
802.11a: 12dBm ± 2dBm
802.11b: 17dBm ± 2dBm
802.11g: 16dBm ± 2dBm
802.11an (HT20): 12dBm ± 2dBm@MCS7
802.11an (HT40): 11dBm ± 2dBm@MCS7
802.11gn (HT20): 15dBm ± 2dBm@MCS7
802.11gn (HT40): 14dBm ± 2dBm@MCS7
-Receiver Sensitivity:
802.11a: ≤ -76dBm@54Mbps
802.11b: ≤ -85dBm@11Mbps
802.11g: ≤ -76dBm@54Mbps
802.11gn (HT20): ≤ -75dBm@MCS7
802.11gn (HT40): ≤ -72dBm@MCS7
802.11an (HT20): ≤ -74dBm@MCS7
802.11an (HT40): ≤ -71dBm@MCS7
-Frequency Range:
2.412 GHz – 2.472 GHz, 5.200 GHz –
5.825 GHz
-Data Rate:
11a: Up to 54Mbps
11b: Up to 11Mbps
11g: Up to 54Mbps
11n: Up to 300Mbps

System Performance*

Firewall Throughput (UDP)…400 (Mbps)
Firewall Throughput (TCP)…300 (Mbps)
New sessions/second……2,000
Concurrent sessions……27,500
IPSec VPN Throughput….100 (Mbps)
No. of IPSec Tunnels……25
SSL VPN Throughput….25 (Mbps)
Anti-Virus Throughput….100 (Mbps)
IPS Throughput….90 (Mbps)
UTM Throughput…..60 (Mbps)

Stateful Inspection Firewall

– Layer 8 (User – Identity) Firewall
– Multiple Security Zones
– Access Control Criteria (ACC) – User – Identity, Source & Destination
Zone, MAC and IP address, Service
– UTM policies – IPS, Web Filtering, Application Filtering,
Anti-Virus, Anti-Spam and Bandwidth Management
– Layer 7 (Application) Control & Visibility
– Access Scheduling
– Policy based Source & Destination NAT
– H.323, SIP NATTraversal
– 802.1q VLAN Support
– DoS & DDoS Attack prevention
– MAC & IP-MAC filtering and Spoof prevention

Gateway Anti-Virus & Anti-Spyware

– Virus, Worm, Trojan Detection & Removal
– Spyware, Malware, Phishing protection
– Automatic virus signature database update
VPN Tunnels
– Customize individual user scanning
– Scan and deliver by file size
– Block by file types
– Add disclaimer/signature

Gateway Anti-Spam
– Inbound Scanning
– Real-time Blacklist (RBL), MIME header check
– Filter based on message header, size, sender, recipient
– Subject line tagging
– IPaddress Black list/White list
– Redirect Spam mails to dedicated email address
– Image-based Spam filtering using RPD Technology
– Zero hour Virus Outbreak Protection
– IP Reputation-based Spam filtering

Intrusion Prevention System
– Signatures: Default, Custom
– IPS Policies: Multiple, Custom
– User-based policy creation
– Automatic Signature updates
– Protocol Anomaly Detection
– DDoS attack prevention
– SCADA-aware IPS with pre-defined category for ICS and SCADA signatures

Web Filtering

– On-cloud Web Category Database
– URL, keyword, File type block
– Categories: Default(89+), Custom
– Protocols supported: HTTP, HTTPS
– Block Malware, Phishing, Pharming URLs
– Schedule-based access control
– Visibility and Controls for HTTPS-based Micro-Apps like Facebook chat, Youtube video upload
– Custom block messages per category
– Block Java Applets, Cookies, Active X
– CIPA Compliant
– Data leakage control via HTTP, HTTPS upload

Application Filtering
– Inbuilt Application Category Database
– Schedule-based access control
– Block

  • Proxy and Tunnel
  • File Transfer
  •  Social Networking
  • Streaming Media
  • Storage and Backup

– Layer 7 (Applications) & Layer 8 (User – Identity) Visibility
– Securing SCADA Networks

  • SCADA/ICS Signature-based Filtering for Protocols – Modbus, DNP3, IEC, Bacnet, Omron FINS, Secure DNP3, Longtalk
  • Control various Commands and Functions

Virtual Private Network
– Encryption – 3DES, DES, AES, Twofish, Blowfish, Serpent
– Hash Algorithms – MD5, SHA-1
– Authentication – Preshared key, Digital certificates
– IPSec NAT Traversal
– Dead peer detection and PFS support
– Diffie Hellman Groups – 1,2,5,14,15,16
– External Certificate Authority support
– Export Road Warrior connection configuration
– Domain name support for tunnel end points
– VPN connection redundancy
– Overlapping Network support
– Hub & Spoke VPN support

– Authentication – Active Directory, LDAP, RADIUS, Cyberoam
– Multi-layered Client Authentication – Certificate, Username/Password
– User &Group policy enforcement
– Network access – Split and Full tunneling
– Browser-based (Portal)Access – Clientless access
– Lightweight SSLVPN Tunneling Client
– Granular access control to all the Enterprise Network resources
– Administrative controls – Session timeout, Dead Peer Detection, Portal customization
– TCP- based Application Access – HTTP, HTTPS, RDP, TELNET, SSH

Instant Messaging (IM) Management
– Yahoo and Windows Live Messenger
– Virus Scanning for IM traffic
– Allow/Block Login
– Allow/Block File Transfer
– Allow/Block Webcam
– Allow/Block one-to-one/group chat
– Content-based blocking
– IM activities Log
– Archive files transferred
– Custom Alerts

Wireless WAN
– USB port 3G/4G and WiMAX Support
– Primary WAN link
– WAN Backup link

Bandwidth Management
– Application and User Identity based Bandwidth Management
– Guaranteed & Burstable bandwidth policy
– Application & User Identity based Traffic Discovery
– Multi WAN bandwidth reporting
– Category-based bandwidth restriction

User Identity and Group-Based Controls

– Access time restriction
– Time and Data Quota restriction
– Schedule based Committed and Burstable Bandwidth
– Schedule based P2Pand IM Controls

– Failover – Automated Failover/Failback, Multi-WAN failover, 3G Modem failover
– WRR based load balancing
– Policy routing based on Application and User
– IP Address Assignment – Static, PPPoE, L2TP, PPTP & DDNS Client, Proxy ARP, DHCP server, DHCP relay
– Support for HTTPProxy
– Dynamic Routing: RIP v1& v2, OSPF, BGP, PIM-SIM, Multicast Forwarding
– Parent Proxy support with FQDN
– “IPv6 Ready” Gold Logo

Administration & System Management
– Web-based configuration wizard
– Role-based access control
– Firmware Upgrades via Web UI
– Web 2.0 compliant UI (HTTPS)
– UI Color Styler
– Command Line Interface (Serial, SSH, Telnet)
– SNMP(v1, v2c, v3)
– Multi-lingual support: Chinese, Hindi, French, Korean
– Cyberoam Central Console (Optional)
– NTPSupport

User Authentication
– Internal database
– Active Directory Integration
– Automatic Windows/RADIUS Single Sign On
– External LDAP/RADIUS database integration
– Thin Client support – Microsoft Windows Server 2003
– 2-factor authentication: 3rd party support** Terminal Services and Citrix XenApp
– External Authentication – Users and Administrators
– User/MAC Binding
– Multiple Authentication servers

– Graphical real-time logging and monitoring
– Syslog support
– Log Viewer – Firewall, IPS, Web filter, Anti Virus, Anti Spam, Authentication, System and Admin Events

IPSec VPN Client***
– Inter-operability with major IPSec VPN Gateways
– Supported platforms: Windows 2000, WinXP 32/64-bit, Windows 2003 32-bit, Windows 2008 32/64-bit, Windows Vista 32/64-bit, Windows 7 32/64-bit
– Import Connection configuration

– ICSAFirewall – Corporate
– Checkmark UTM Level 5 Certification
– VPNC – Basic and AES interoperability
– “IPv6 Ready” Gold Logo

Hardware Specifications

Memory…. 1GB


H x W x D (inches)…..1.35 x 8.75 x 6.8
H x W x D (cms)….3.43 x 22.23 x 17.3
Weight……1.10 kg, 2.42 lbs

Input Voltage….100-240 VAC
Total Heat Dissipation (BTU)..75

Operating Temperature…0 to 40 °C
Storage Temperature….-25 to 75 °C
Relative Humidity (Non condensing)….10 to 90%

*Antivirus, IPS and UTM performance is measured based on HTTP traffic as per RFC 3511 guidelines. Actual performance may vary depending on the real network traffic environments.
**For details, refer Cyberoam’s Technical Alliance Partner list on Cyberoam website. ***Additional Purchase Required.
